Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins

  • 1
  • 2

Brand Name : JVT

Model Number : JVT1224WLP-XXXXR-S

Certification : ISO9001/SGS/UL/ROHS/Reach

Place of Origin : China

MOQ : 10000 PCS

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300000 per day

Delivery Time : 7-10 working days

Packaging Details : Reel packing +outer carton

Pitch : 1.2mm

Color : Black

Rating Current : 2A AC/DC

No.of Pins : 8

Equivalent : Molex 1.2mm

Plated Style : Gold-plated

Contact Now

1.2mm Pitch Single Row SMT Header Connector With Gold - Plated Contact Pins

Friendly

PCB SMT header connector.pdf

Cross Part number list.pdf

Specification Standardized:

Pitch

1.2mm

Poles

8

Applicable wire

28#

Rating Voltage

50V AC/DC

Rating Current

2A AC/DC

Withstand voltage

500V AC/minute

Operating temperature

-25°C to +85°C

Insulation resistance

100MΩ Min

Contact resistance

20MΩ Max.

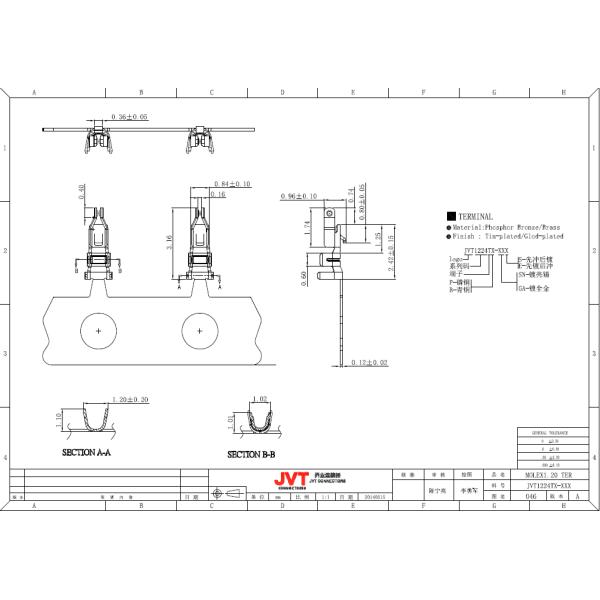

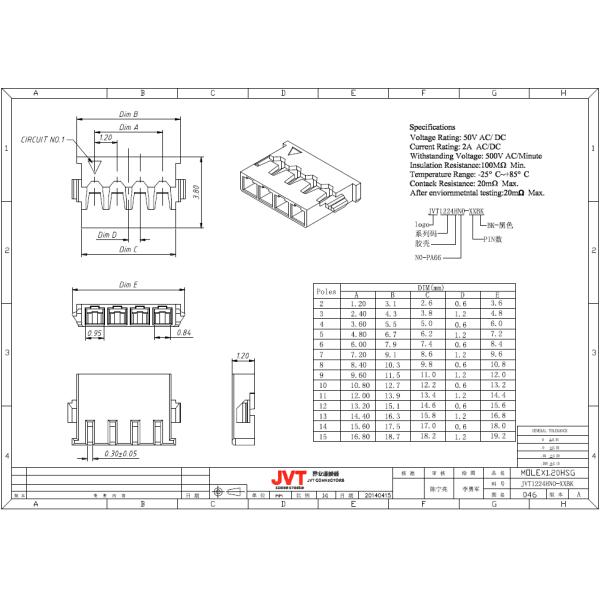

Drawing

Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins

Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins

Single Row 1.2mm Pitch SMT Header Connector With Gold - Plated Contact Pins
